CG-P Series High-end Multi-component Injection Molding Machine
The YIZUMI C Series multi-component injection molding machine is designed for enhanced quality of life and individualization. Focused on stability and customization, the Custom Series aims to bring vibrancy and diversity to everyday life. Clamping forces range from 1,600 to 8,000 kN.
Stability
Customization
Clamping Unit
Balanced force clamping technology
- The BFC technology delivers high platen rigidity, long mold life.
- Easily-adjustable processes and minimized possible flashes, and better ensures molding accuracy and stability.
- Easily-adjustable processes and minimized possible flashes, and better ensures molding accuracy and stability.
Digital closed-loop positioning control technology

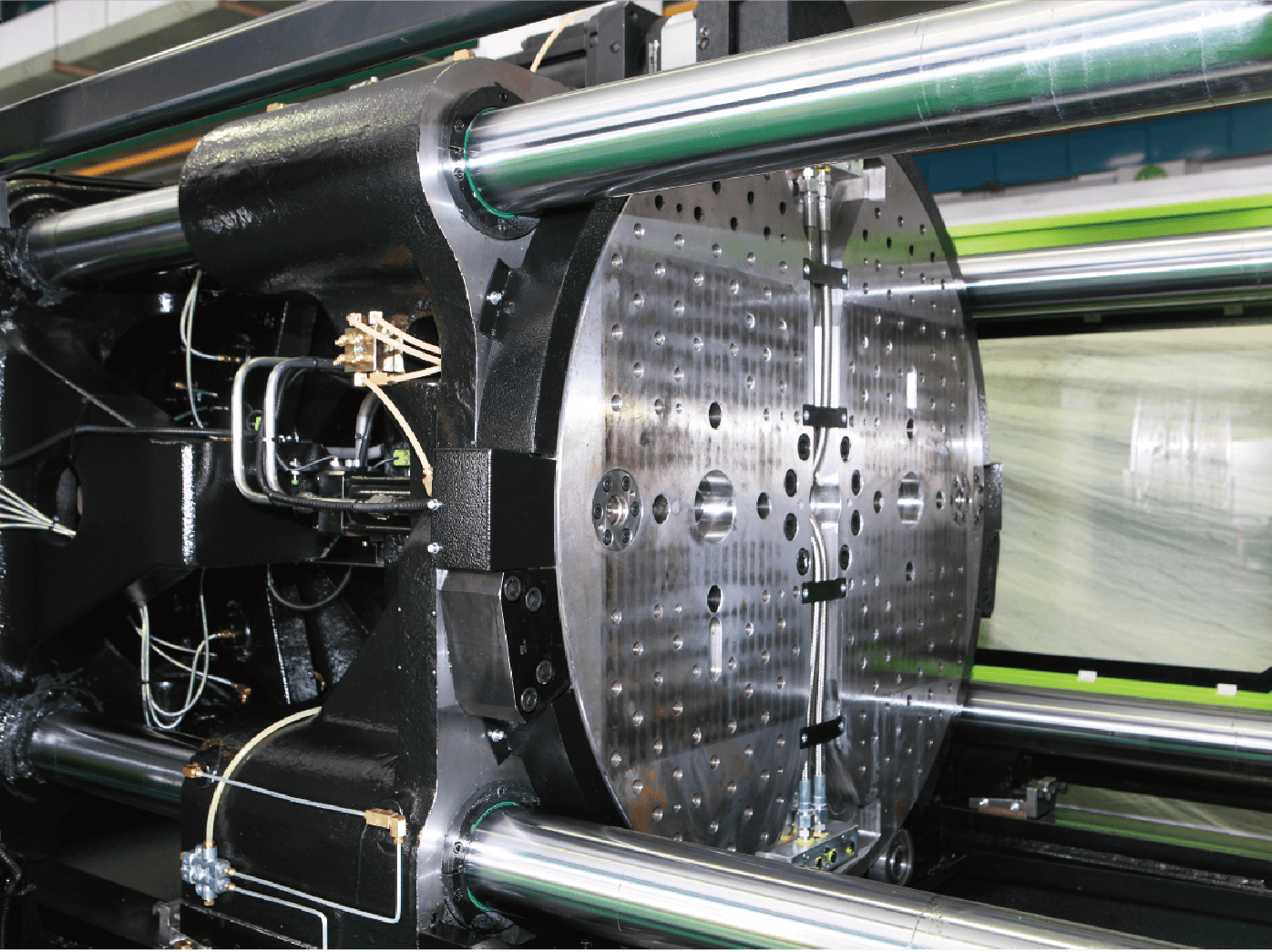

The DCPC technology enables the turntable to rotate smoothly without impact and position accurately.
Magnetically levitated turntable technology
The turntable is designed with magnetic levitation (for 160T/260T) to reduce frictional loss, increase the movement reliability, and prolong the life of the turntable.
Injection Unit
Modular injection unit combination
Customization is available through the flexible combination of injection units according to different process requirements and flexible software functions.
High-rigidity low-inertia injection unit
With the adoption of low-inertia moving parts, the injection movement response is quick, and the injection accuracy is further improved.
New-generation PID temperature control
With the self-adaptive PID temperature control, the static temperature control accuracy is up to ±0.4 degrees centigrade.
L/V Independent Injection Unit
Independent V injection unit
- Independent V-type injection unit adopts an independent modular design to meet the combination needs of injection molding machines of different tonnages.
- With YIZUMI's optimization design, the removal of the injection unit provides more mold height for convenient installation and disassembly of molds.
- With YIZUMI's optimization design, the removal of the injection unit provides more mold height for convenient installation and disassembly of molds.
Independent L injection unit
- Independent L-type injection unit adopts an independent modular design to meet the combination needs of injection molding machines of different tonnages and different brands.
- Flexible injection unit is convenient for use, providing a series of functions including core pulling, sequential valve, hot runner, and synchronous action.
- Flexible injection unit is convenient for use, providing a series of functions including core pulling, sequential valve, hot runner, and synchronous action.
Control System
The powerful and responsive industrial controller for a multi-component injection molding machine can accurately and synchronously control several injection units, and exchange data with the turntable by synchronous communication in real time to achieve turntable accurate positioning.
- Remote online monitoring of production
- Unlimited parameter storage through USB
- Statistical process control (SPC) for multiple injection units
- Setup and tracking of key movement curves
- Early deceleration and positioning control of movements
- Up to 128-zone built-in hot runner control extension
- Integrated control of auxiliary equipment
- Remote online monitoring of production
- Unlimited parameter storage through USB
- Statistical process control (SPC) for multiple injection units
- Setup and tracking of key movement curves
- Early deceleration and positioning control of movements
- Up to 128-zone built-in hot runner control extension
- Integrated control of auxiliary equipment
