LSR Series Liquid Silicone Injection Molding Machine
LSR Series represents a shift from traditional thermoplastics to advanced thermoset plastics, encompassing both hard (bakelite/BMC) and soft (liquid silicone) processes. This liquid silicone injection molding machine integrates a specialized liquid silicone injection unit with the SKII platform, offering high precision and stability. This special-usage injection molding machine is designed for efficient, precise material blending, vulcanization, and solidification, meeting the dynamic needs of modern markets with improved product yield.
More Efficient
More Professional
Customized Design
Standard pneumatic injection nozzle

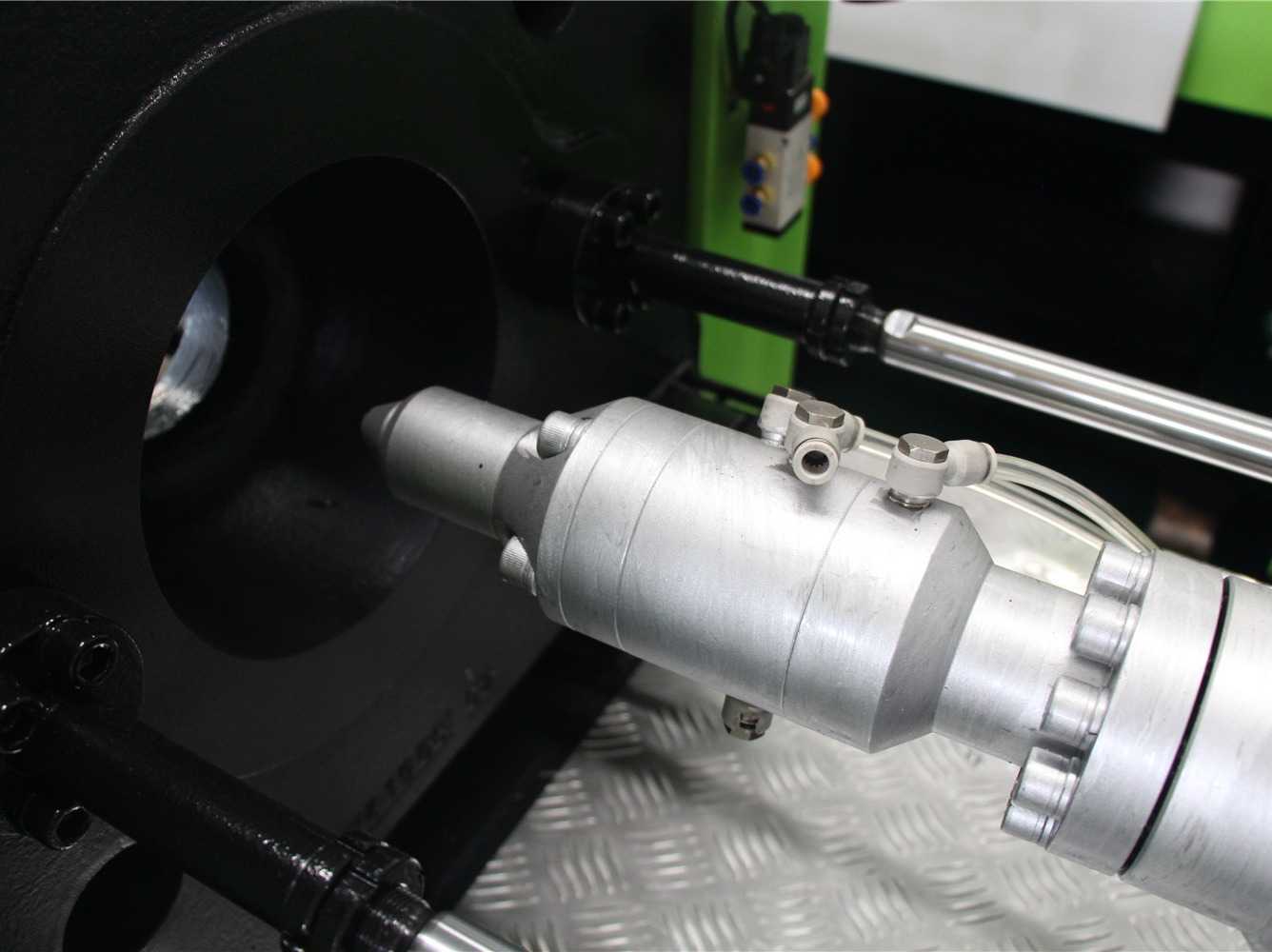

Water-cooled pneumatic injection nozzle - prevents liquid silicone leakage, and prevents the mold temperature from being transmitted to nozzle and resulting in curing reaction of mixed LSR in the nozzle.

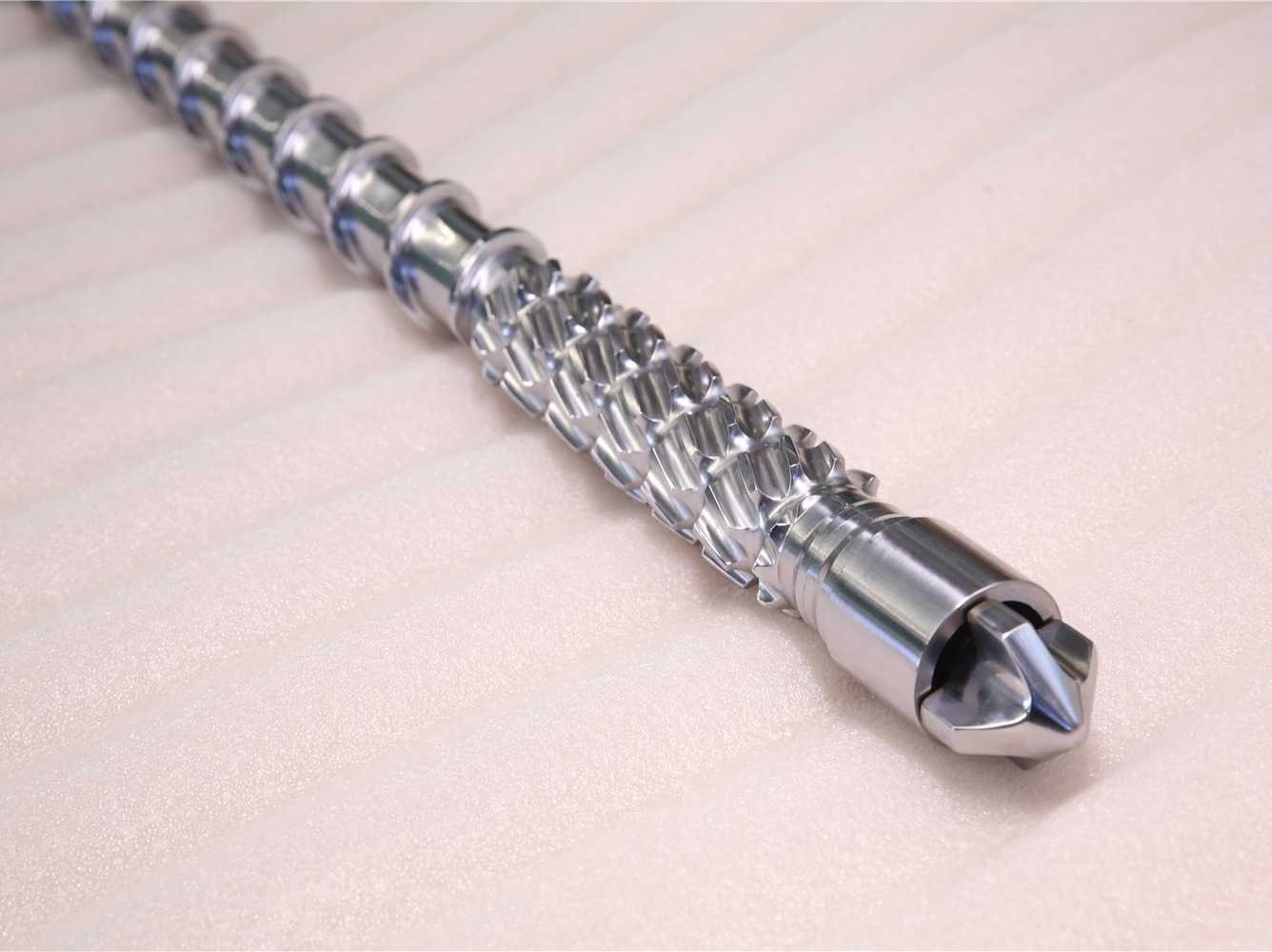

Mixing screw for silicone
- Mixed compounds at the front end of the screw to ensure the fully blending of components A and B while eliminating phenomena such as adhesion, yellowing, or blackening;
- Sensitive seal rings are used as an adaptation to the high liquidity of silicone resin to reduce leakage during injection start-up and injection.
- Sensitive seal rings are used as an adaptation to the high liquidity of silicone resin to reduce leakage during injection start-up and injection.
Temperature control for mold heating
- Visualized built-in mold temperature control to facilitate temperature adjustment.
- Separate connecting socket for each set of heating units for the convenience of customers.
- Separate connecting socket for each set of heating units for the convenience of customers.

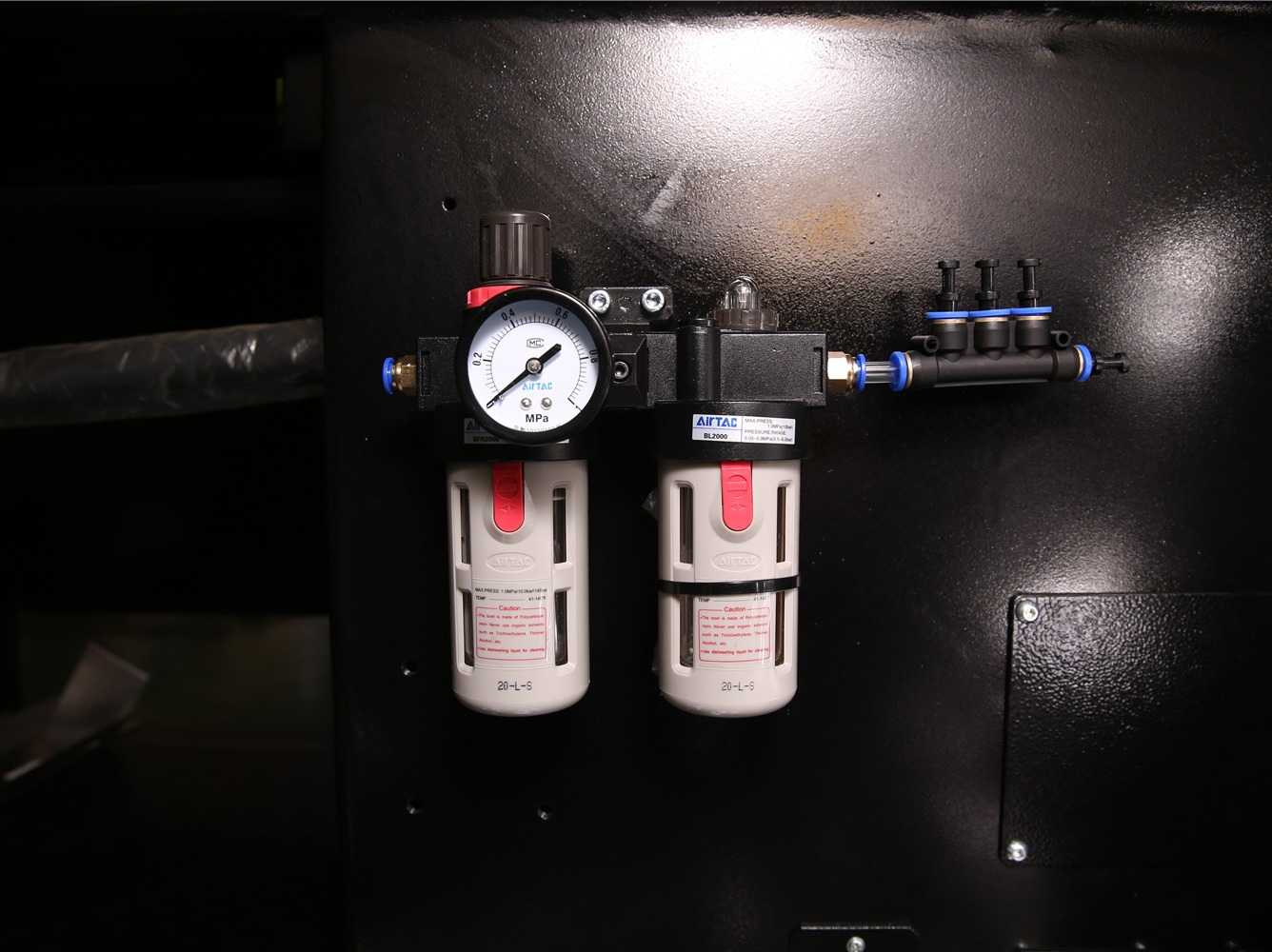

Standard pneumatic 2-piece filter and air gun fittings
User friendly design for easy connection to the air gun and silicone feeder on site

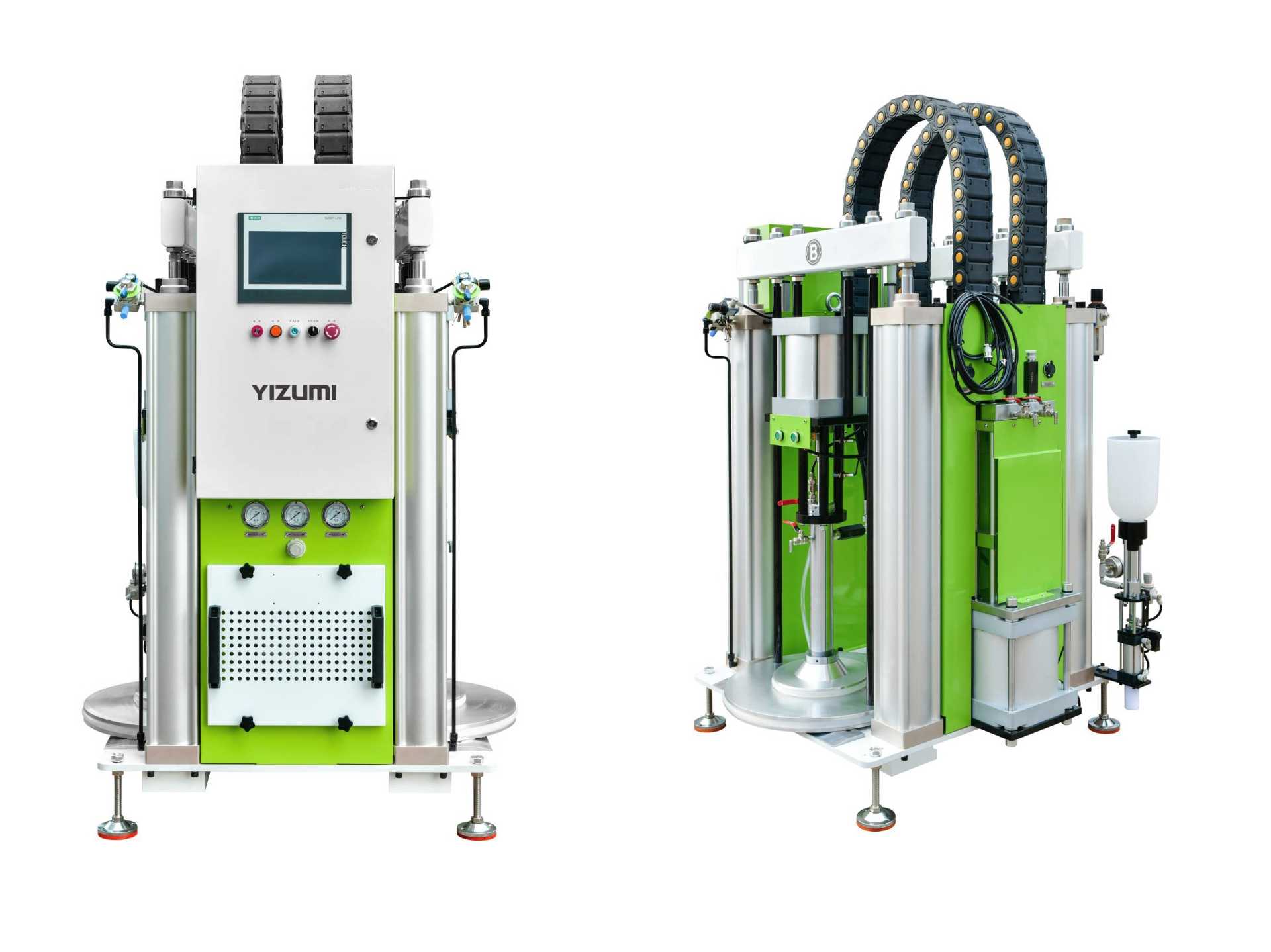

Auxiliary Equipment - YIZUMI liquid silicone feeder
- Fully pneumatic secondary metering system, energy efficient and pollution-free;
- Manual correction of A/B material component ratio. The ratio error is less than 3%;
- Maintenance-free design - silicone leakage free, less waste;
- Uniform color mixing with no flow marks, high repetition accuracy.
- Manual correction of A/B material component ratio. The ratio error is less than 3%;
- Maintenance-free design - silicone leakage free, less waste;
- Uniform color mixing with no flow marks, high repetition accuracy.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
SKⅢ Series General Purpose Injection Molding Machine
General Purpose Plastic Injection Molding Machine SKⅢ series offers efficiency, energy savings, stability, and user experience. With SK/A5 platform interchangeability and continual optimization, it's the top choice for small to medium-sized machines. Clamping forces range from 900 to 10,000 kN.
UPVC & PPR Series Special Injection Molding Machine For Pipe Fitting
The series' capability to produce complex pipe fittings with high precision makes this special injection molding machine ideal for both UPVC and PPR applications, catering to the evolving needs of the plumbing and construction industries.
UPVC series clamping forces from 2,000 to 7,500 kN.
PPR series clamping forces from 1,600 to 26,000 kN.

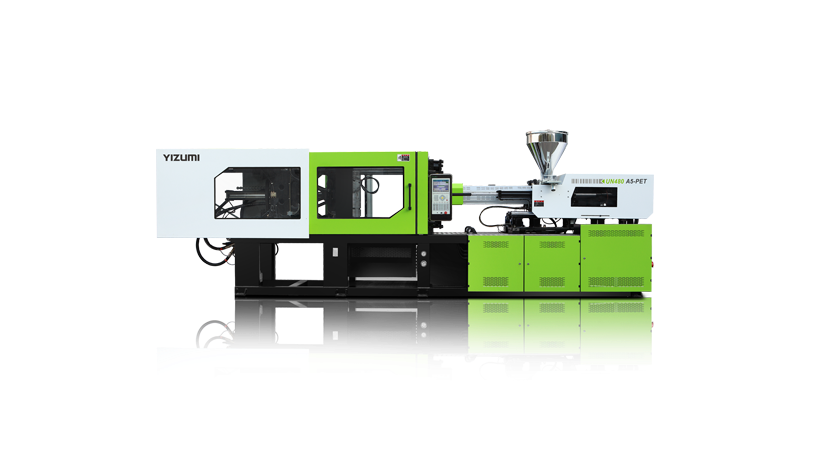

PET Series PET Preform Injection Molding Machine
YIZUMI's SKII-V-PET Series, a second-gen PET preform solution using the IPD model, excels in speed, professionalism, and efficiency. Leading in China for plasticizing efficiency, it offers diverse preform types. Superior technical performance makes it the top choice in PET preform injection molding. Clamping forces: 1,200-6,500 kN.
Optimized clamping unit
1. The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products.
2. Platen, tie bars and machine frame of better mechanical properties can better improve the rigidity of the whole machine and reduce deformation.
3. The rigidity of overall mold locking is increased by more than 25%.
