Toggle-clamping Hydraulic Injection Molding Machine
LS Series Injection Molding Machine for Deep-cavity Product
The LS series toggle-clamping hydraulic injection molding machine for deep-cavity is applied with a new-type outward toggle clamping unit, largely increasing opening stroke compared with conventional clamping units, and can be widely applied for the production of trash cans, plastic drums, outer barrels, and plastic stools. Also, it is convenient for applying in-mold labeling and the robot pick-up process to satisfy customers' requirements. Available with clamping forces from 5,300 to 11,000 kN.
Customize
Stable

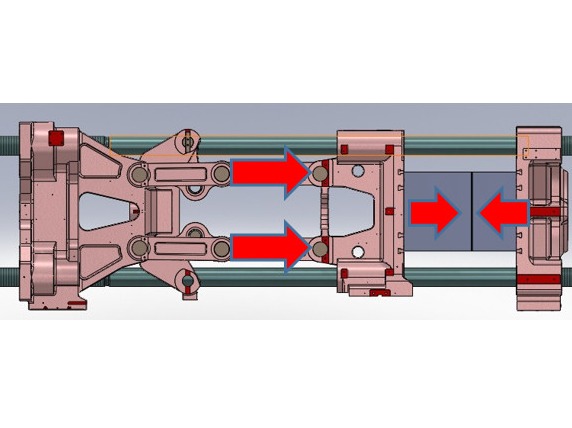

Clamping force focuses on the platen center, less platen deformation
- Clamping force focuses on the platen center, reducing platen deformation.
- Improved utilization of clamping force can effectively reduce flash defects and the wear and tear of the machine, saving energy.
- Improved utilization of clamping force can effectively reduce flash defects and the wear and tear of the machine, saving energy.
Large opening stroke
25%-35% larger than a conventional clamping unit.
Stable operation, high speed and short dry cycle time

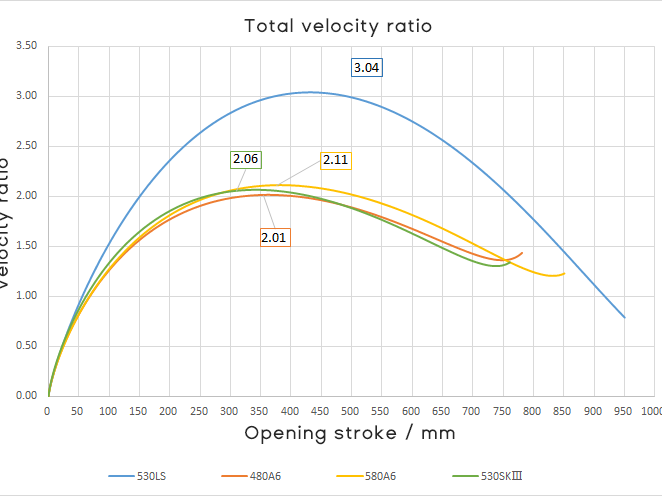

- Optimized outward toggle configuration, high velocity ratio, and fast operation.
- Proportional valve and procedural closed-loop control ensure stable mold opening and closing.
- Proportional valve and procedural closed-loop control ensure stable mold opening and closing.
Fourth-generation servo system
Proven by years of practical application and higher configuration, the third-generation servo system is stable, reliable, and durable with characteristics of high efficiency, energy saving, low noise, strong power, and fast response.
Upgraded KEBA system
More accurate control of system pressure, flow, position & temperature, as well as more stable overall machine performance.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Automation
A5 Series Standard High-end Servo Injection Molding Machine
With larger specifications and faster response, wider processing range and lower repeated investment costs. Optimized injection units ensure precision and stability. Uniform-stress molding technology provides durability and reliability. Available with clamping forces from 600 to 26,000 kN.
Enhanced load relief groove design
The optimization of load relief groove makes the force applied to the rod threads more uniform, ensures long service life of the tie rod.
Optimized clamping unit
1. The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products.
2. Platen, tie bars and machine frame of better mechanical properties can better improve the rigidity of the whole machine and reduce deformation.
3. The rigidity of overall mold locking is increased by more than 25%.
Surface Planeness Testing
YIZUMI robot automation solutions for plastics injection molding offer rapid, accurate surface planeness testing, improving production precision and efficiency.
